Description
Detailed description:

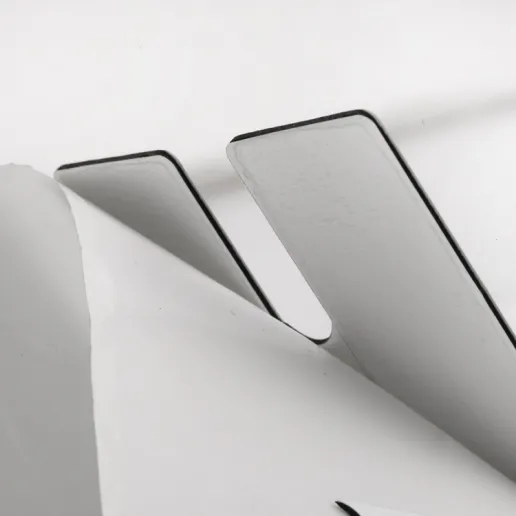

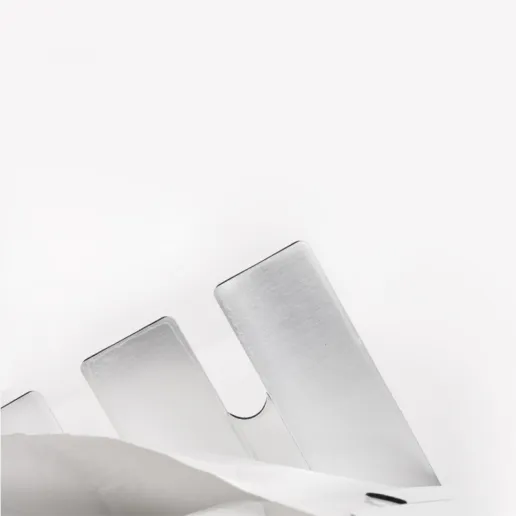

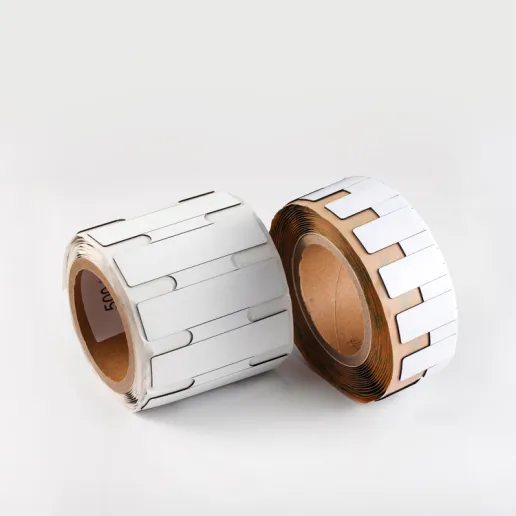

RFID UHF flexible anti-metal tag is a tag made of a special material and process. It solves the problem that ordinary anti-metal tag that can't be attached to the irregular metal surface, not only has a good reading performance but also has the characteristic of conventional self-adhesive labels. According to the application, the RFID printer link system can realize the docking system's real-time coding and printing characteristics.
|
Product name |
RFID Flexible anti-metal tag |
|
Chip |
MR6 (Customized) |
|
Dimensions |
70*30mm, 60*25mm (Customized) |
|
Thickness |
1.2mm |
|
IP Rating |
N/A |
|
Material |
PP Synthetic Paper + EVA Foam |
|
Application Temp |
-40~80°C |
|
Operating Temp |
-20~60°C |
|
Memory |
EPC 128bits; USER 32 bits (Depends on the chip) |
|
Frequency range with the best performance |
902-928MHz (Customized) |
|
IC Life |
Write endurance of 100,000 cyclesDate retentions of 10 years |
|
Protocol |
ISO/IEC 18000-6C |
