Description

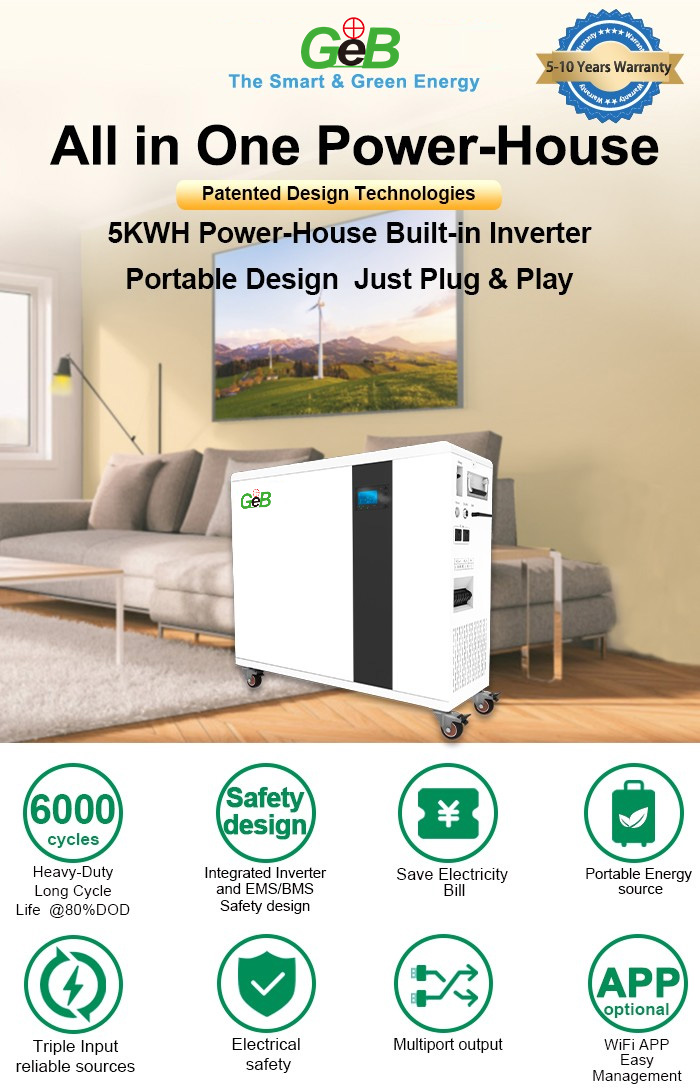

| Feature 1. Labor and installation time are reduced with the built-in inverter and smart BMS. 2. WiFi App Management is not required. 3. Extended Cycle Life: 6000 Cycles at 80% DOD. 4. Wheels make moving easy.Small and lightweight, suitable for both indoor and outdoor use. 5. Three sources of input: diesel engine charging, utility grid charging, and solar energy charging. |
| Products Description | ||
| Models | Nominal Voltage | 48V |
| Battery | ||
| Nominal Voltage [V] | 51.2 | |
| Voltage Range [V] | 44.8~57.6 | |
| Capacity | 3KWH | 5KWH |
| Max.discharge rate | 0.7C | 0.7C |
| Max.charge rate | 0.5C | 0.5C |
| Battery Type | LiFePO Battery | |
| AC Output | ||
| Rated Power | 3000VA | 5000VA |
| Overload Capacity | 120% (5s) | |
| 200% (100ms) | ||
| Output Voltage | 230Vac±2% | |
| Output Current | 13.7 A | 22 A |
| Rated Frequency | 50/60Hz | |
| VTHD | 3% | |
| Transfer Time | ＜10ms | |
| Output Wave | Pure Sine Wave | |
| Output Type | Multi-purpose Socket×2 | |
| AC Input Voltage Range | 170~280Vac | |
| Max AC Charge Current(Battery) | 40A | 60A |
| PV Input | ||
| Max. PV Power(Recommended) | 3000w | 4000w |
| Max. PV Voltage | 145V | |
| MPPT Range | 60V~115V | |
| Max PV Charge Current(Battery) | 60A | 80A |
| Operating Conditions | ||
| Operating Temperature | 0~55℃ | |
| Storage Temperature | -15℃~60℃ | |
| Humidity | 5%~95% | |
| Cooling Strategy | Fan | |
| Weight [kg] | 42 | 60 |
| Dimension [W x H x D, mm] | 700*580*230 | 700*580*230 |
| Enclosure Protection Rating | IP31 | |
| Communication | Wifi(Remote) | |
| Work Mode | ||
| Solar First | Solar and UPS | |
| Utility First | UPS and Backup | |
| Solar—Battery—Utility | Solar—Battery—Utility | |
