Description
Products Description
Details Images

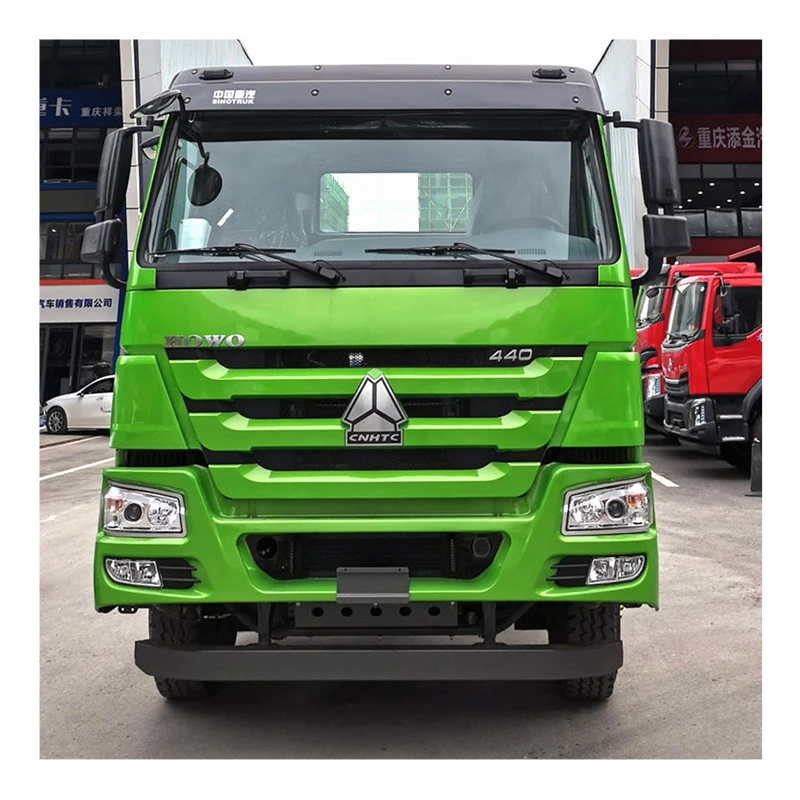

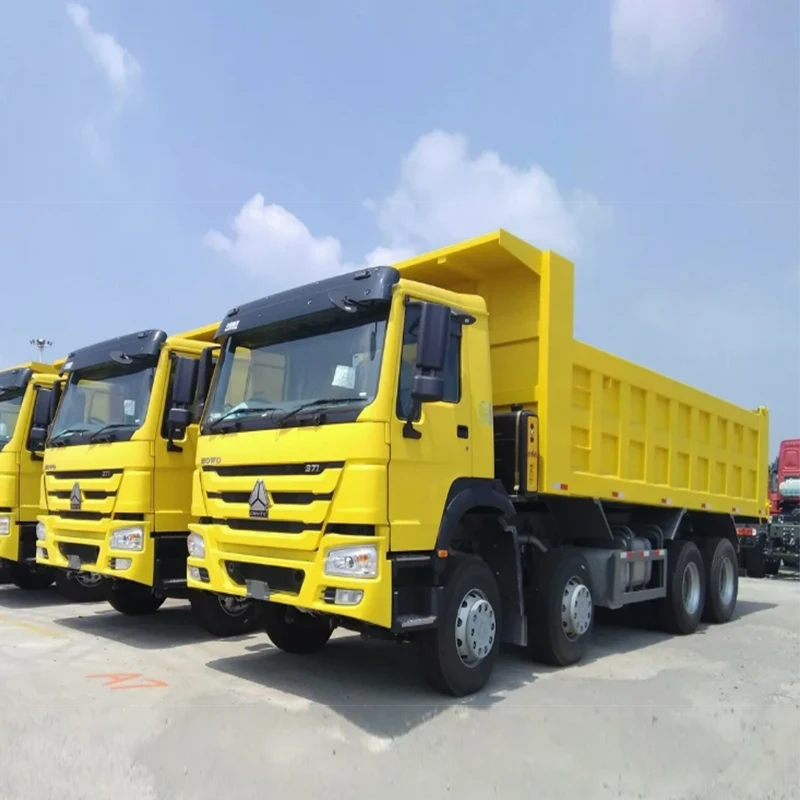

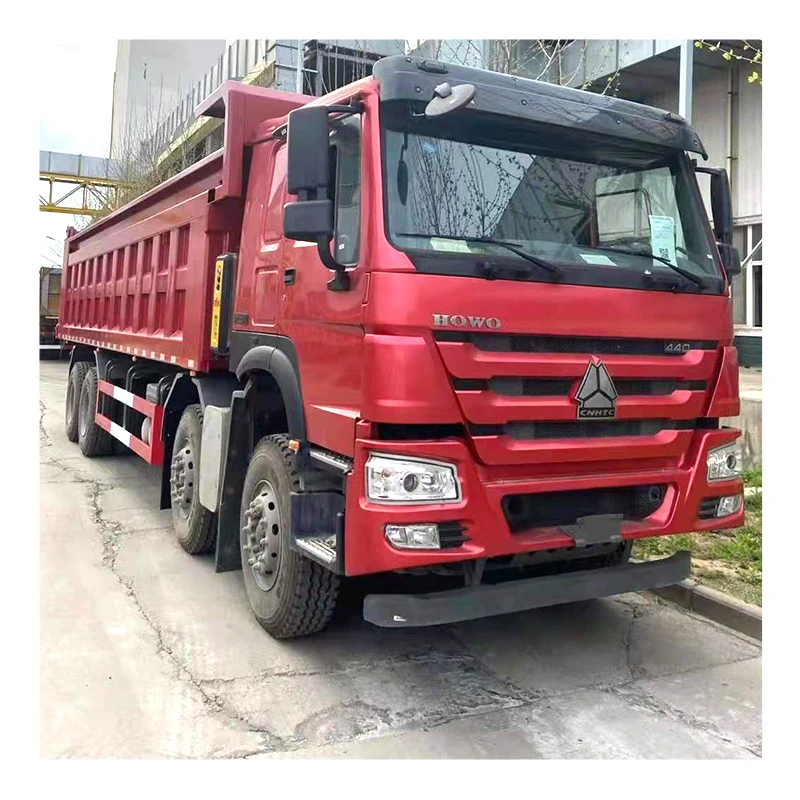

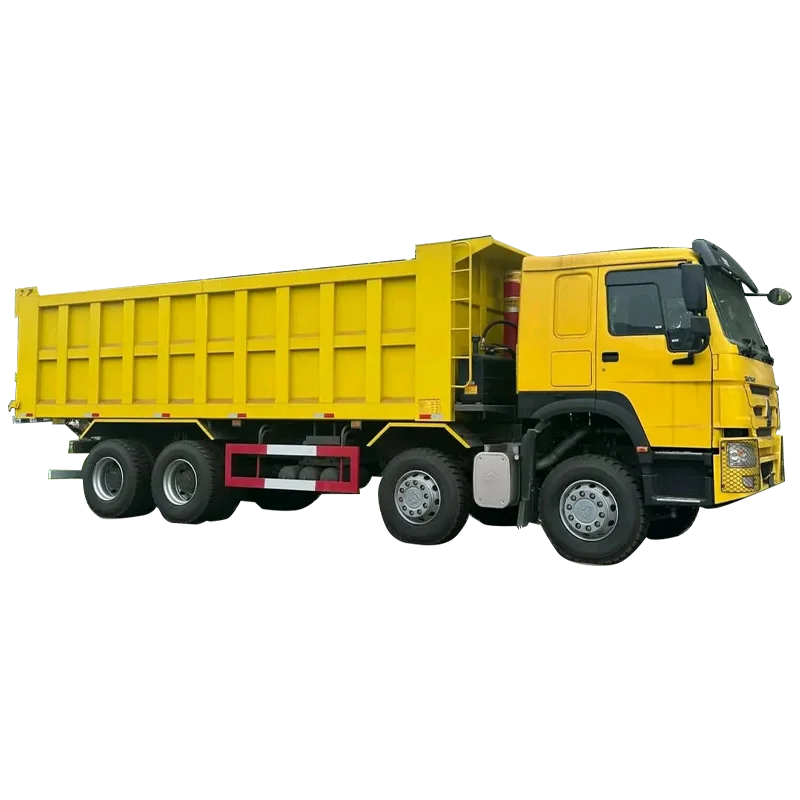

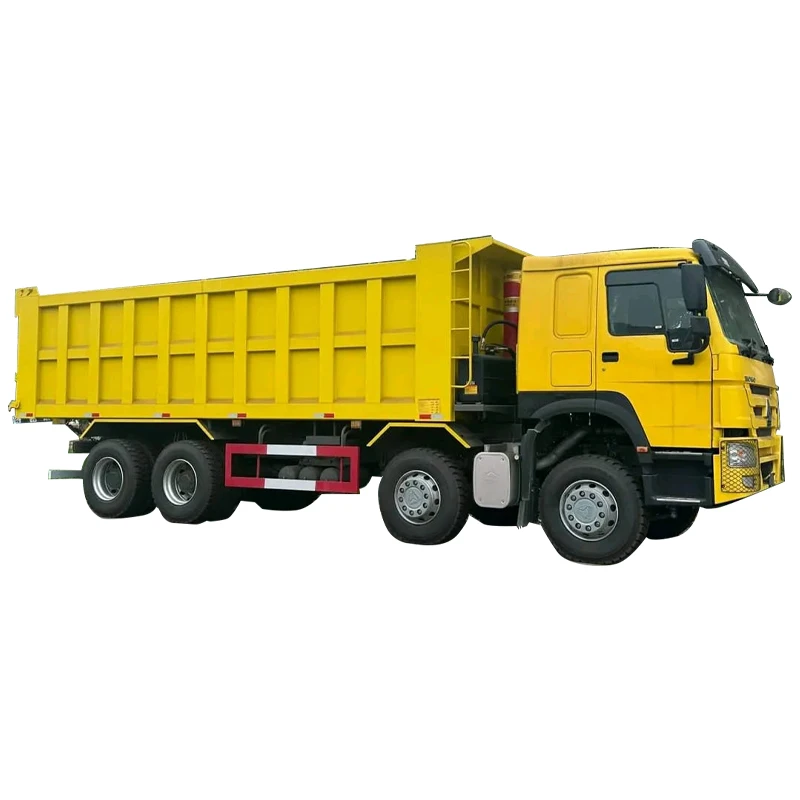

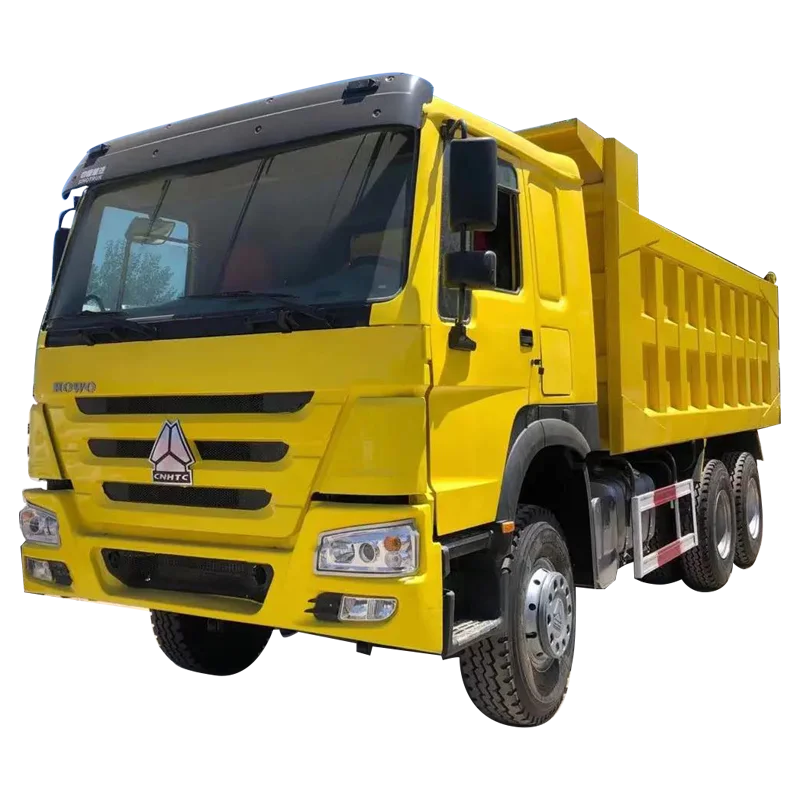

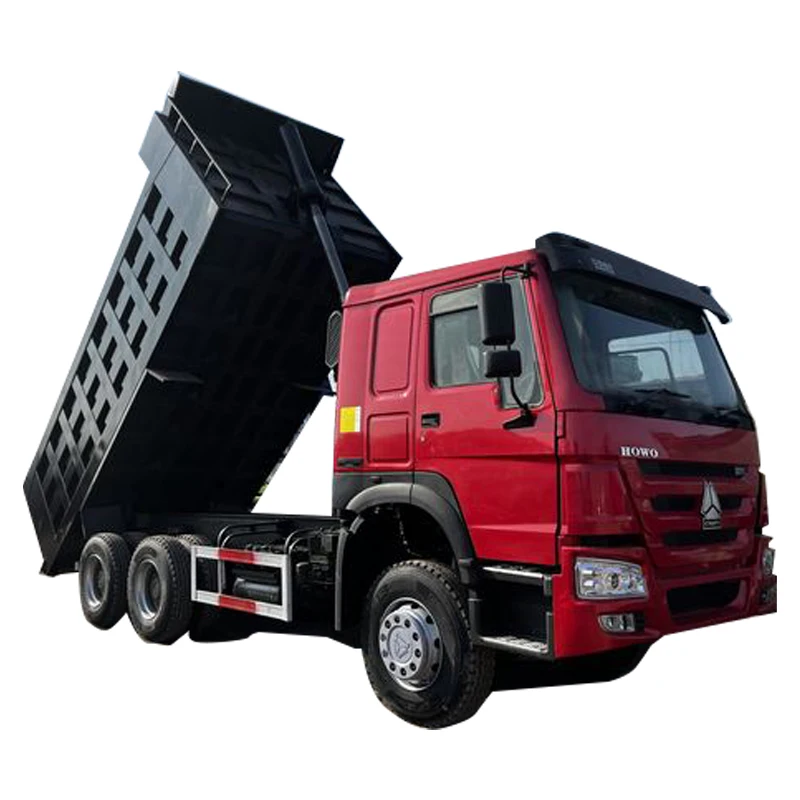

SINOTRUK HOWOHeavy Truck 440 HP 8X4 7.6m Dump Truck
Sinotruk MC13.54-50 8.8m large dump stock is sufficient
Detail presentation

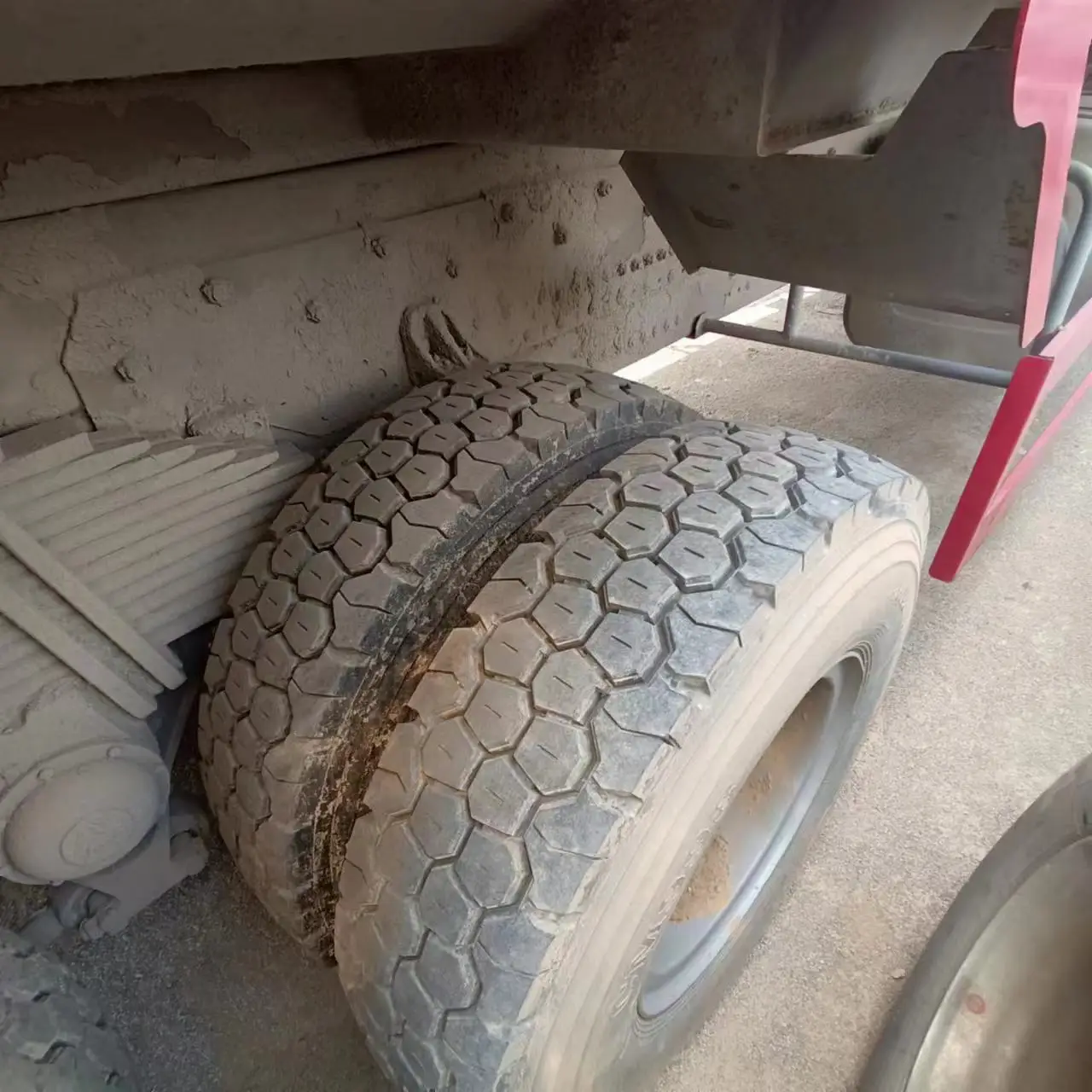

tyre

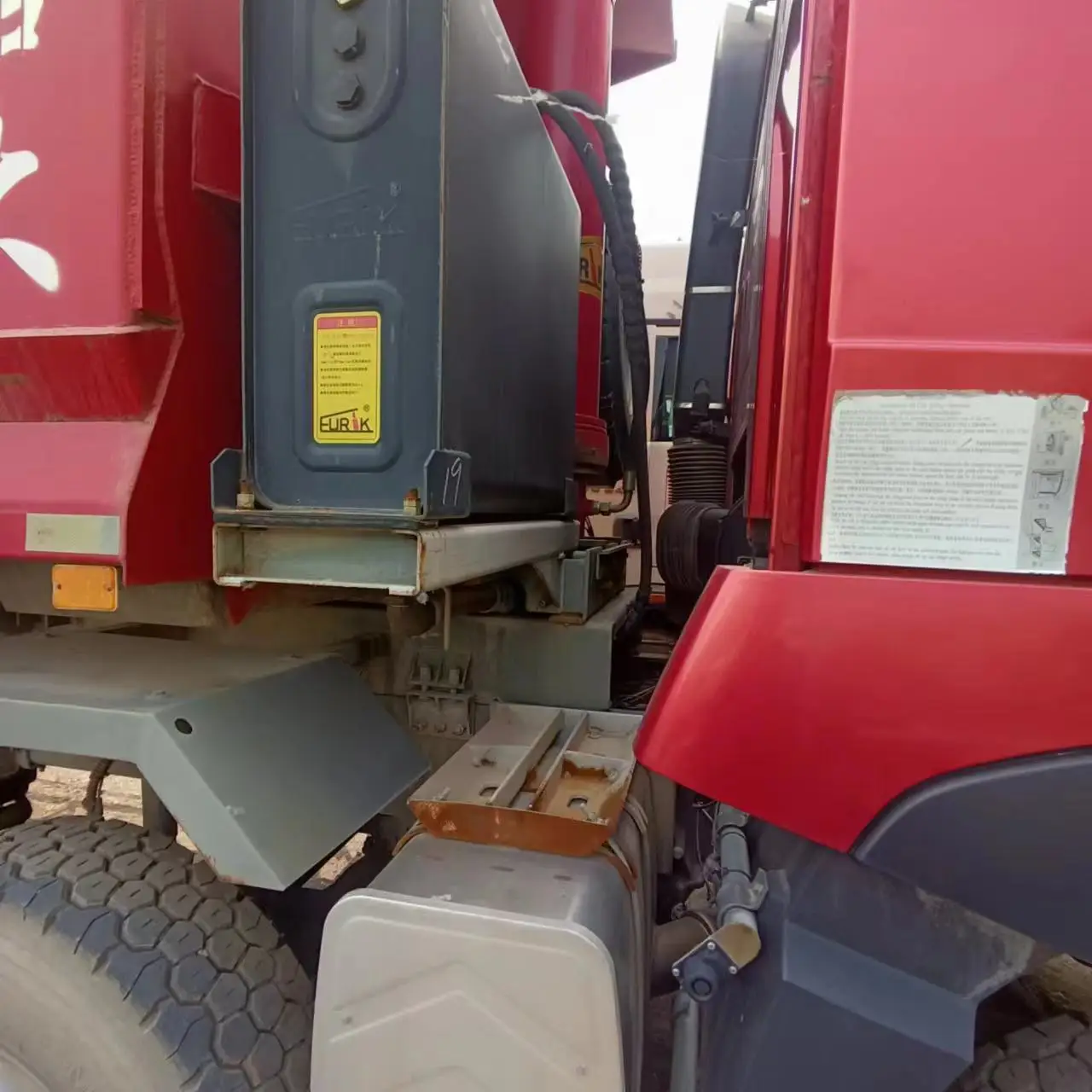

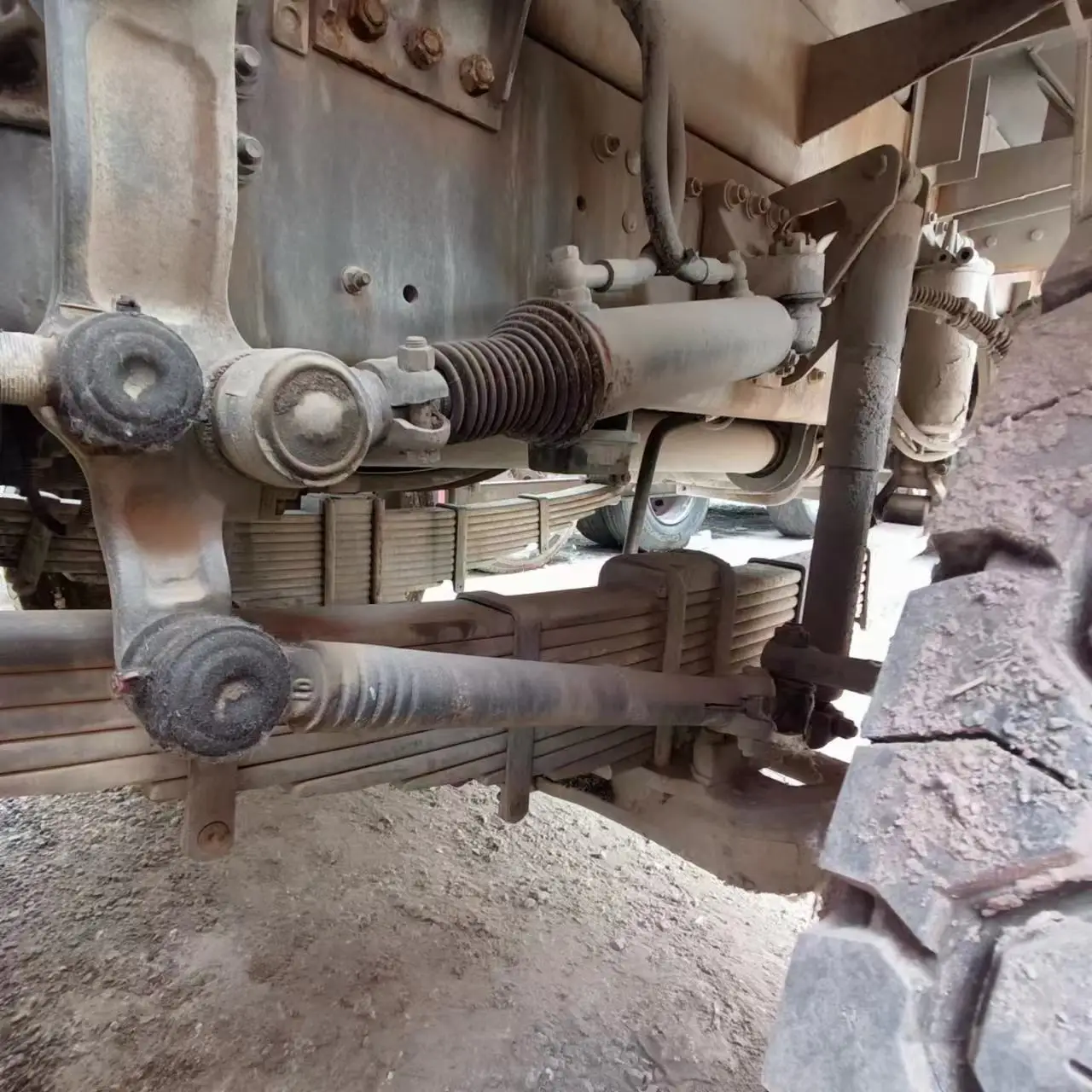

Chassis display
Spare tyre.
Basic information | ||||||
Announcement model: | LZZ1EXVD7LD596232 | Driving form: | 8X4 | |||
Wheelbase: | 1950+3225+1350mm | Engine: | sinotruk MC11.44-60 | |||
Transmission: | HW25712XSL | Rear axle speed ratio: | 4.8 | |||
Body length: | 9.58 meters | Vehicle width: | 2.55 m | |||
Body height: | 3.55 meters | Front wheelbase: | 2022/2022mm | |||
Rear wheelbase: | 1860/1860mm | Vehicle weight: | 15.5 tons | |||
Rated load capacity: | 15.37 tons | Total mass: | 31 tons | |||
Tonnage level: | Heavy truck | Approach angle: | 17 degrees | |||
Departure angle: | 21 degrees | Origin: | Jinan, Shandong Province | |||
Segmented markets: | Urban construction waste soil | Fuel type: | diesel oil | |||
Engine param | ||||||
Engine model: | MC11.44-50 | Engine brand: | sinotruk Corporation | |||
Number of cylinders: | 6-cylinder | Fuel type: | diesel oil | |||
Displacement: | 10.518L | Emission standards: | National V | |||
Maximum horsepower: | 400hp | Maximum output power: | 324kW | |||
Maximum torque: | 2100N · m | Maximum torque speed: | 1000-1400rpm | |||
Rated speed: | 1900rpm | Engine type: | High pressure common rail+EGR+SCR | |||
Container param | ||||||
Container length: | 7.6m | Box width: | 2.35m | |||
Container height: | 1.3m | Container form: | Self dumping type | |||
Cabin param | ||||||
Driver's seat form: | Airbag shock absorber seats | |||||
Transmission param | ||||||
Transmission model: | sinotruk HW25712XSL+HW50 flange power take-off | Transmission brand: | sinotruk Corporation | |||
Forward gear: | 12th gear | Reverse gears: | Two | |||
tank | ||||||
Fuel tank material: | aluminium alloy | Fuel tank capacity: | 400L | |||
Chassis param | ||||||
Front axle allowable load: | 6500/7000kg | Rear axle allowable load: | 17500 (two axis group) kg | |||
Number of springs: | 2011/11/12 | |||||
tyre | ||||||
Tire specifications: | 12.00R20 (reinforced steel ring/mixed pattern) | Number of tires: | 12 | |||
Handling configuration | ||||||
ABS anti lock braking: | 4s/4m | |||||
Product Paramenters
FAQ
Q1: Are you trader or manufacturer?
A1: We are manufacturer, we have our exhibition room, truck repair workshop, and professional workers sales.
Q2: How do you do after sale service?
A2: We will do video instruction by phone or by computer, for any use problem you can tell our salesman, we will do instruction
for you.
Q3: what is the shipping process?
A3: for the truck field, we use most is shipping service by sea.
Q4: Can I visit your factory?
A4: You are welcomed to visit our workshop, we located in Shandong, face to face talking is prefered.
Q5: What kind of payment term do you provide?
A5: We can do TT, LC.
Q6: What about the delivery?
A6: Our usual delivery time is within 15 days (will change according to the actual shipment date), if you need to order large
quantities and vehicle modification and customization, the specific delivery time is discussed separately.
Q7: What about the price?
A7: Depending on the configuration and number of years of the used car, the price will be slightly different. One car for one
price, the price is subject to customer service quotation.
A1: We are manufacturer, we have our exhibition room, truck repair workshop, and professional workers sales.
Q2: How do you do after sale service?
A2: We will do video instruction by phone or by computer, for any use problem you can tell our salesman, we will do instruction
for you.
Q3: what is the shipping process?
A3: for the truck field, we use most is shipping service by sea.
Q4: Can I visit your factory?
A4: You are welcomed to visit our workshop, we located in Shandong, face to face talking is prefered.
Q5: What kind of payment term do you provide?
A5: We can do TT, LC.
Q6: What about the delivery?
A6: Our usual delivery time is within 15 days (will change according to the actual shipment date), if you need to order large
quantities and vehicle modification and customization, the specific delivery time is discussed separately.
Q7: What about the price?
A7: Depending on the configuration and number of years of the used car, the price will be slightly different. One car for one
price, the price is subject to customer service quotation.
