Y2 SERIES MOTOR,1.5HP THREE PHASE ELECTRIC MOTOR,THREE PHASE PUMP MOTORS
Product Description
Y Series motors are totally enclosed fan cooled(TEFC).squirrel cage three-phase induction motors,developed with new technique They are renewal and upgrading products of Yseries The mounting dimension is fully comformed with IEC standard . The motors have the merits of beautiful modeling .compact structure ,low noise,high efficency,large staring torque,easy serving,etc The motors are adopted with F class insulation and designed with assessing method for insulation practice.it enhances greatly motor's safety and reliability.These motors have reached an international advandced level Y series motors can be widely used in varions machines and eqnipments.such as drilling machines,blowers ,pumps, compressors,transporters,agricultural and food processing machines
Ambient temperature: -15oC≤ θ ≤ 40oC
Altitude: No higher than 1000 meters from sea level
Rated voltage: 380V, 220/380V, 380/660V, 415V,etc
Rated frequency: 50Hz or 60Hz
Insulation class: F
Protection type: IP54 or IP55
Cooling type: IC411
Duty type: S1

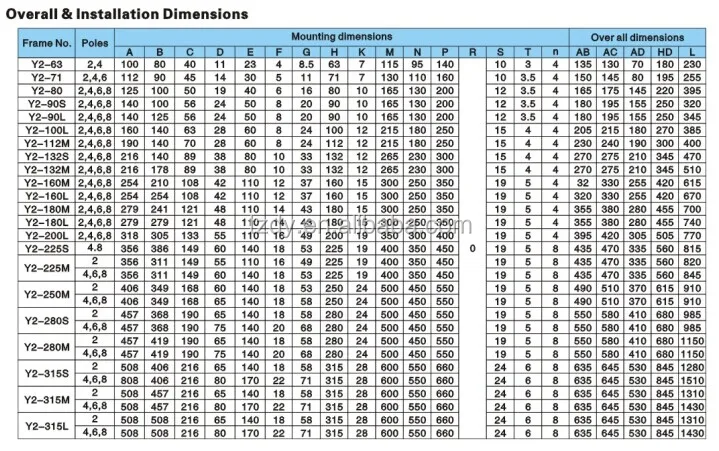

There are three kinds of installation way for motor:
1. B3 Frame with foot end shield without flange
2. B35 Frame with foot end shield with flange
3. B5 Frame without foot end shield with flange

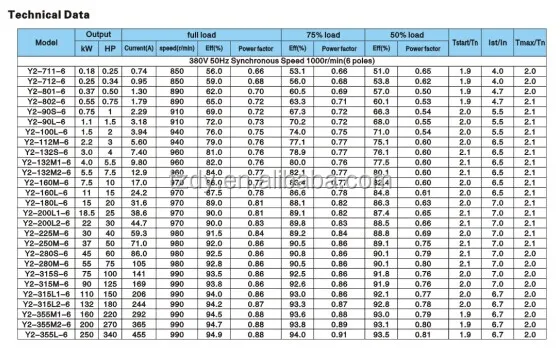

| Type | Power (kw) | Current (A) | Speed (r/min) | Eff.% | P.F | N.m | Tst Tn |
Ist Tn |
T.max Tn |
dB(A) |
| synchronous speed 3000 r/min | ||||||||||
| YE2-71M1-2 | 0.37 | 1.0 | 2740 | 69.0 | 0.81 | 1.29 | 2.2 | 6.1 | 2.2 | 62 |
| YE2-71M2-2 | 0.55 | 1.4 | 2870 | 72.3 | 0.82 | 1.92 | 2.2 | 6.1 | 2.2 | 62 |
| YE2-80M1-2 | 0.75 | 1.7 | 2875 | 80.7 | 0.82 | 2.50 | 2.2 | 7.0 | 2.3 | 62 |
| YE2-80M2-2 | 1.1 | 2.4 | 2880 | 82.7 | 0.83 | 3.65 | 2.2 | 7.3 | 2.3 | 62 |
| YE2-90S-2 | 1.5 | 3.2 | 2880 | 84.2 | 0.84 | 4.97 | 2.2 | 7.6 | 2.3 | 67 |
| YE2-90L-2 | 2.2 | 4.6 | 2880 | 85.9 | 0.85 | 7.30 | 2.2 | 7.6 | 2.3 | 67 |
| YE2-100L-2 | 3 | 6.0 | 2915 | 87.1 | 0.87 | 9.95 | 2.2 | 7.8 | 2.3 | 74 |
| YE3-112M-2 | 4 | 7.8 | 2935 | 88.1 | 0.88 | 13.1 | 2.2 | 8.3 | 2.3 | 77 |
Y2 SERIES MOTOR,1.5HP THREE PHASE ELECTRIC MOTOR,THREE PHASE PUMP MOTORS

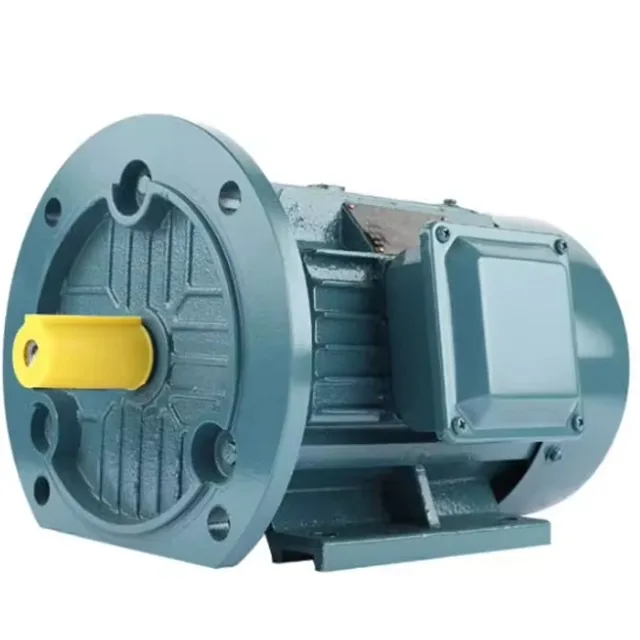

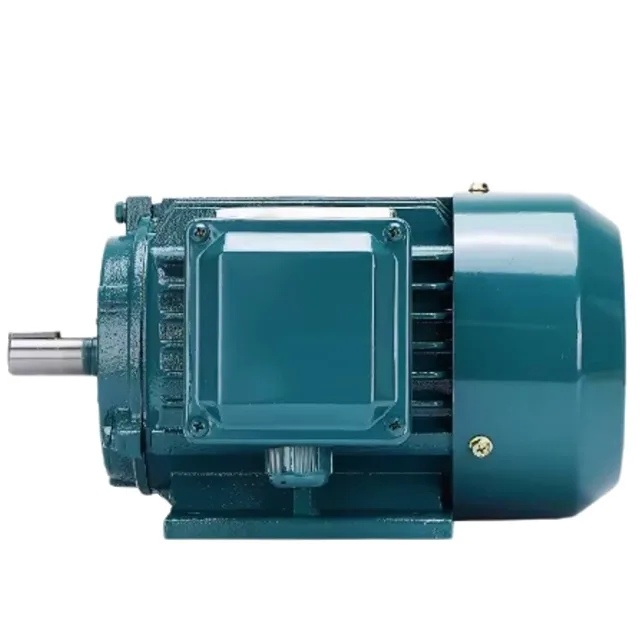

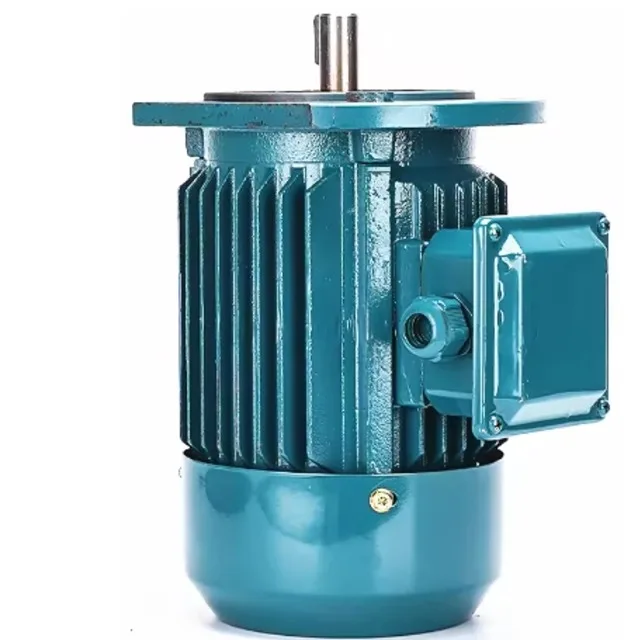

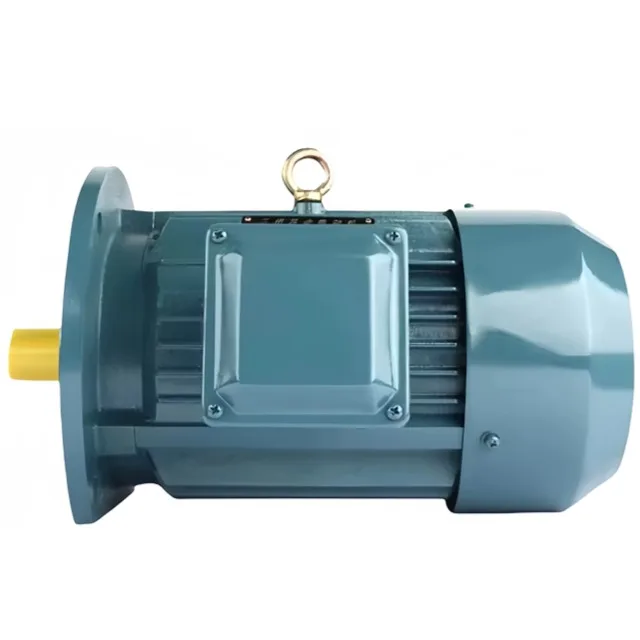

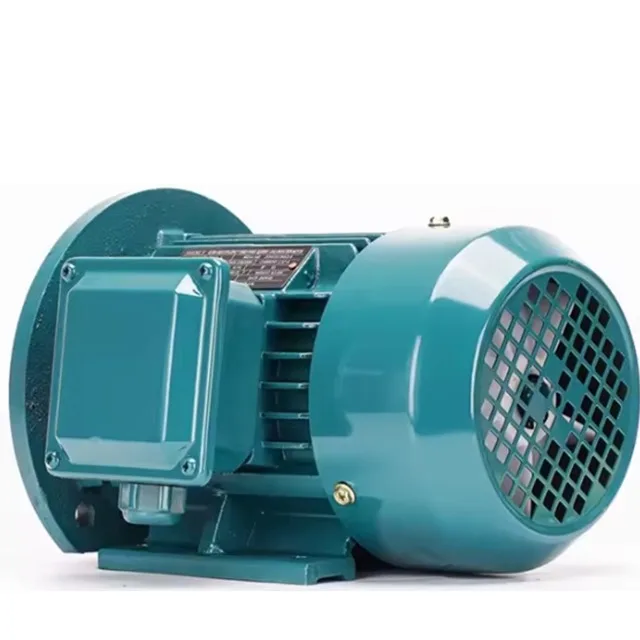

Detailed Images
Packaging & Shipping
Y2 SERIES MOTOR,1.5HP THREE PHASE ELECTRIC MOTOR,THREE PHASE PUMP MOTORS
COMPANY VIEW:
Y2 SERIES MOTOR,1.5HP THREE PHASE ELECTRIC MOTOR,THREE PHASE PUMP MOTORS
Certifications
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
