Description
Product Description
Model No.: NMRV/NRV025, 030, 040, 050, 063, 075, 090, 110, 130
Reduction gear, worm gear, gear reducer
Reduction gear
Working principle of gear reducer :
When the output speed of the motor of the gear reducer is input from the driving shaft, the small gear of the reducer will move. The large gear is linked with the small gear, so the movement of the small gear will drive the movement of the large gear. The number of teeth is more than the number of teeth on the pinion, so the speed of the big gear will be slower than that of the pinion, and then output through the output shaft of the big gear, thus playing the role of output deceleration.
Features:
1) High quality aluminum alloy die cast gearbox
2) High accuracy worm gear and worm shaft
3) Less noise and lower temperature increase
4) Easy mounting and linking, high efficiency
5) Power: 0.06 - 15kW
6) Output torque: 2.7 - 1, 760Nm
7) Transmission rate: 5 - 100
Inner packing: Carton Outer packing: Wooden case
Reduction gear, worm gear, gear reducer
| model | PAM IEC | N | M | P | 7.5D | 10D | 15D | 20D | 25D | 30D | 40D | 50D | 60D | 80D |
| NMRV030 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | / | / | / |
| NMRV030 | 63B14 | 60 | 75 | 90 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | / | / | / |
| NMRV030 | 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| NMRV030 | 56B14 | 50 | 65 | 80 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| NMRV040 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | / | / | / |
| NMRV040 | 71B14 | 70 | 85 | 105 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | / | / | / |
| NMRV040 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NMRV040 | 63B14 | 60 | 75 | 90 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NRMV050 | 90B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | / | / | / | / | / |
| NRMV050 | 80B14 | 80 | 100 | 120 | 19 | 19 | 19 | 19 | 19 | / | / | / | / | / |
| NRMV050 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| NRMV050 | 71B14 | 70 | 85 | 105 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| NMRV063 | 90B5 | 130 | 165 | 200 | 24 | 24 | 24 | 24 | 24 | 24 | / | / | / | / |
| NMRV063 | 90B14 | 95 | 115 | 140 | 24 | 24 | 24 | 24 | 2 |

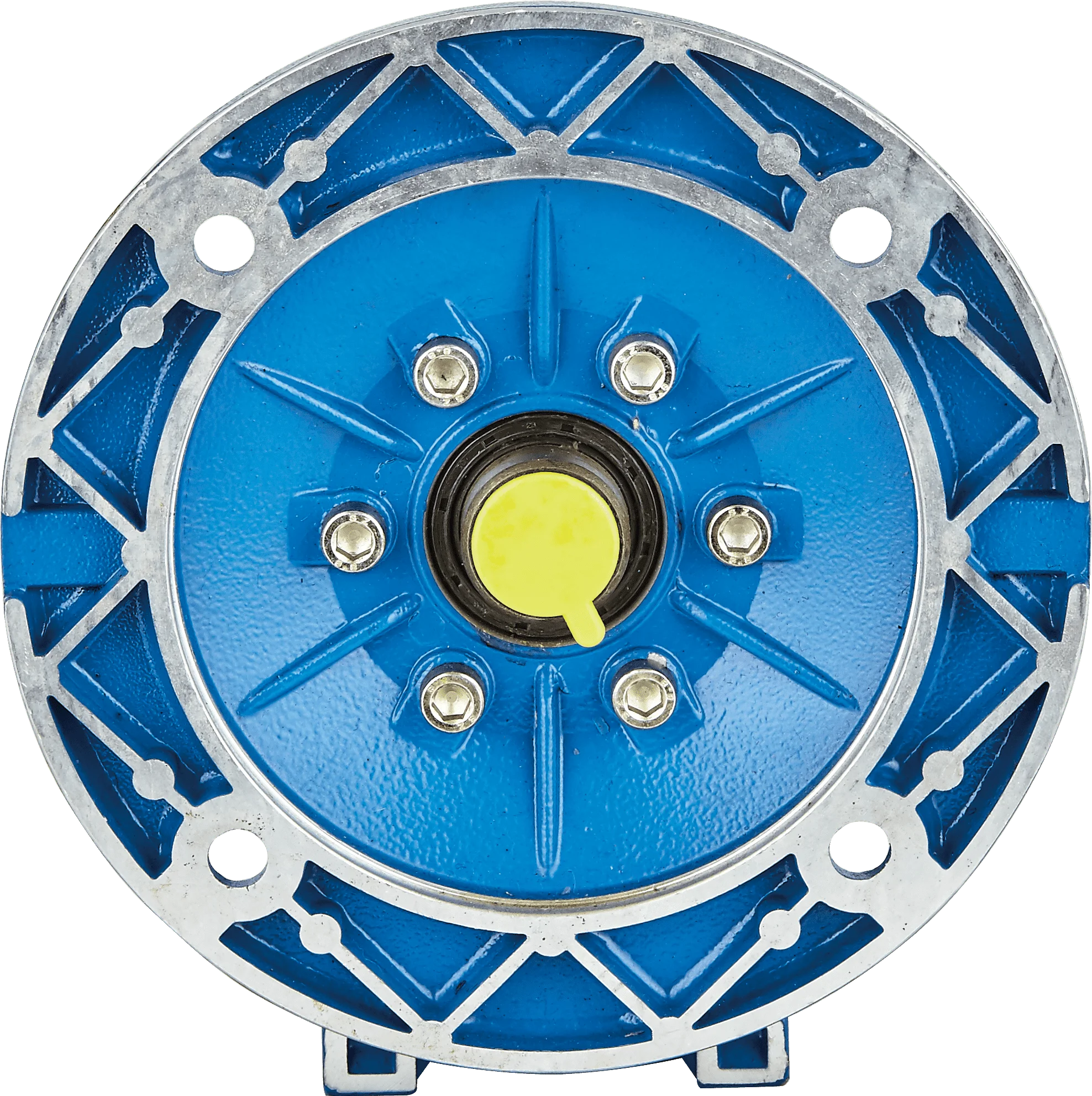

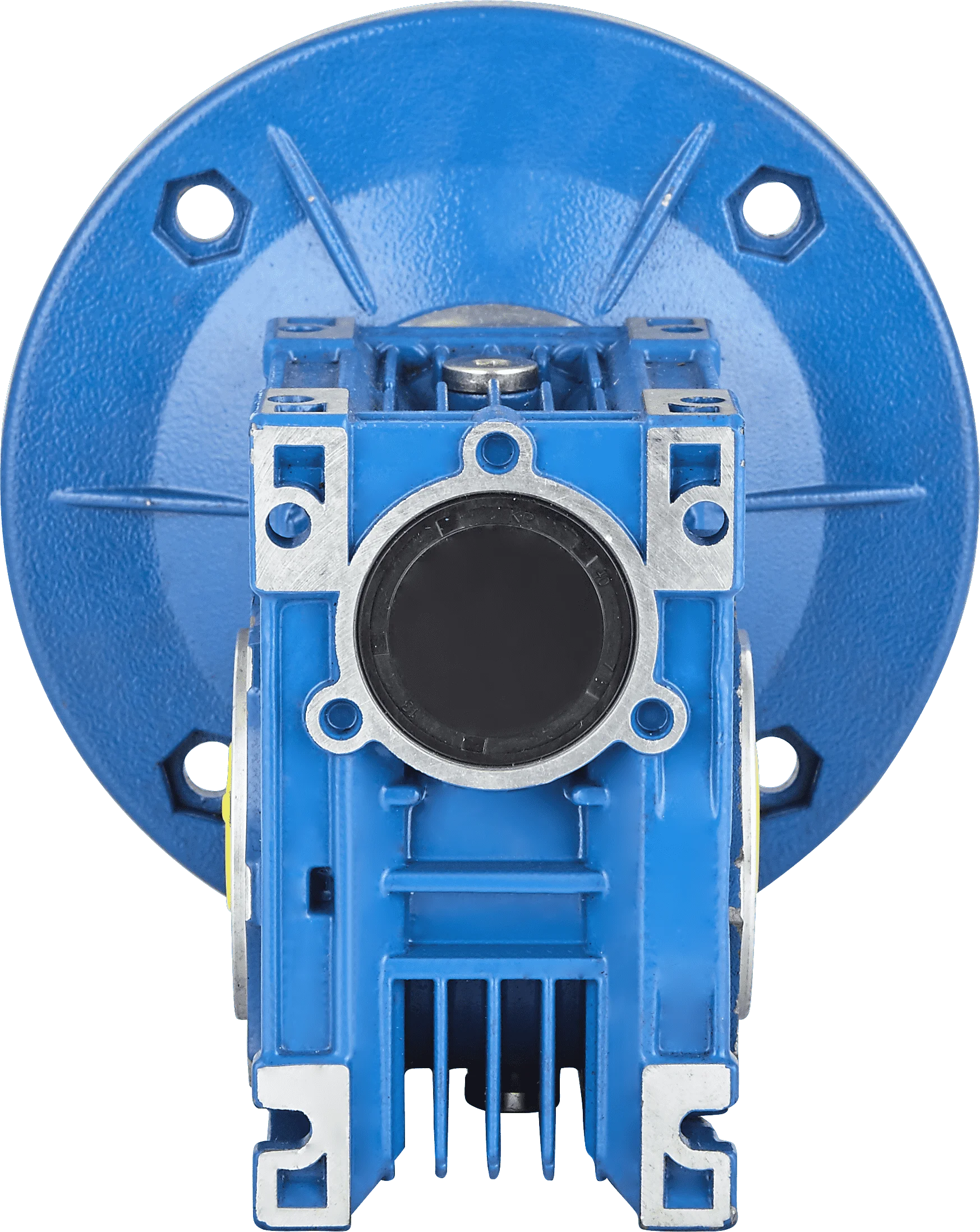

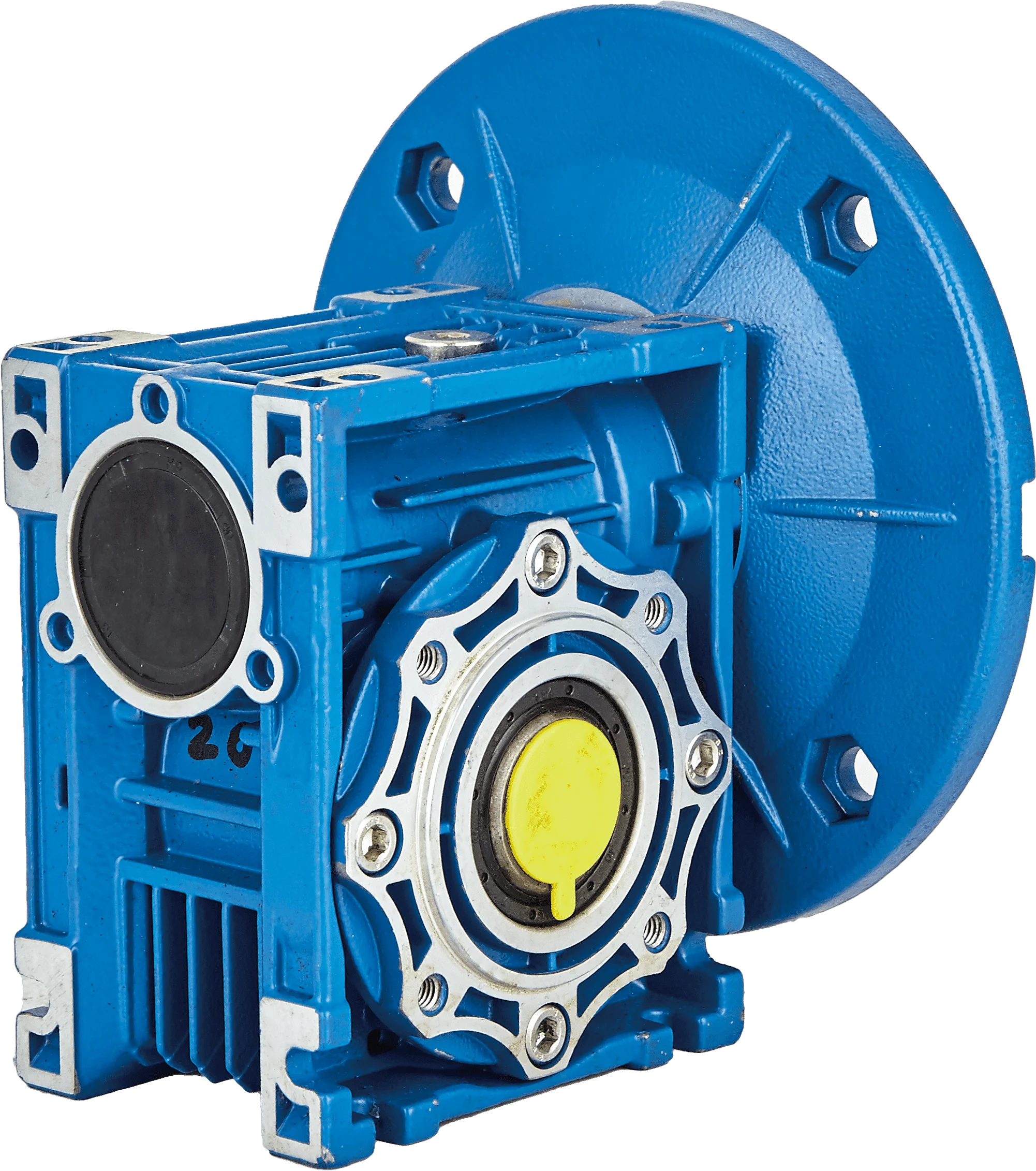

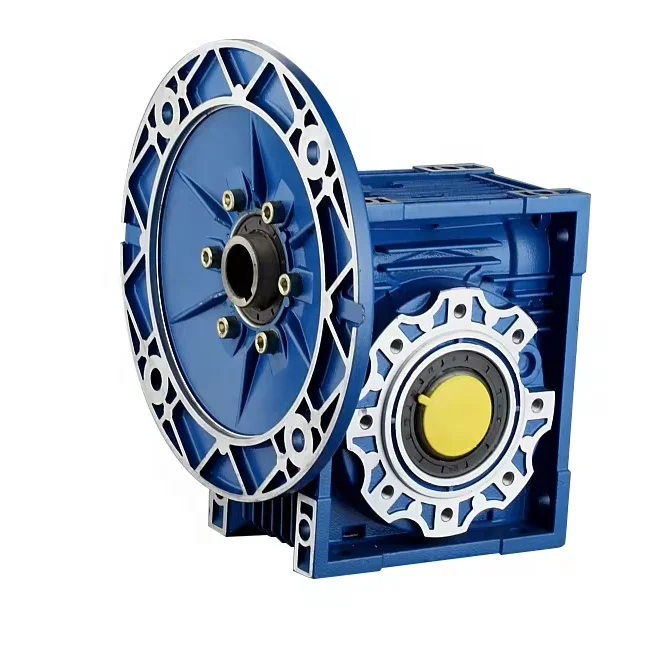

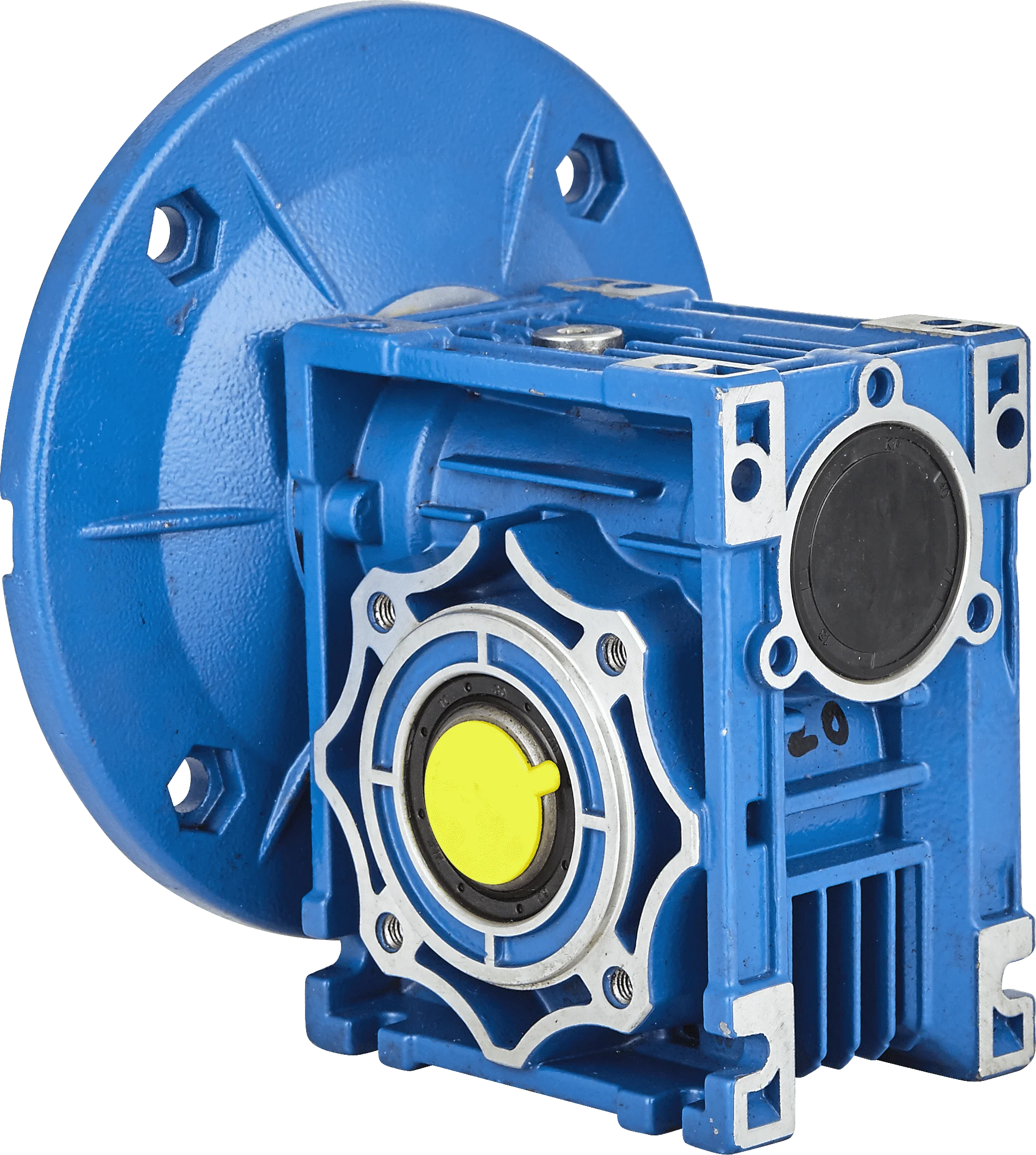

Detailed Images
Packaging & Shipping
Company Information
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
