Description
MS series three phase Ac Motor speed reducer RV025
High quality aluminum housing from 025-090
High quality iron cast housing from 110-150
NSK bearings
Tin Bronze worm wheel
Rv series worm gear speed reducers:
Model size:025,030,040,050,063,075,090,110,130,150
Speed ratio:5,7.5,10,15,20,25,30,40,50,60,80,100
MS series three phase Ac Motor speed reducer RV025
Main features:
1.large speed ratio range
2.small volume,low weight ,saving space for mounting.
3.high efficiency,high mechanical strength and high quality aluminum alloy housing
4.long life service,large output torque,low noise and little vibration
5.low temperature rise,omnibearing installation ,easy to connect with other machinery.
6.high carry ability,elegant apperance.
7.CE standard,input power can be 0.06KW-15KW
8.stable transmission
| Model | Rated power | Current | Power factor | Efficiency | speed | Locked Rotor torque |
Locked Rot or Current | Breakdown Torque |
| Type | (KW) | (A) | (cosΦ) | (η%) | (r/min) | Tst TN |
Ist TN |
T.max TN |
| synchronous speed 3000r/min(380V 50HZ) | ||||||||
| MS802-2 | 1.1 | 2.46 | 0.84 | 76.2 | 2825 | 2.3 | 6.9 | 2.2 |
| MS90S-2 | 1.5 | 3.46 | 0.84 | 78.5 | 2840 | 2.3 | 7.0 | 2.2 |
| MS90L-2 | 2.2 | 4.85 | 0.85 | 81 | 2840 | 2.3 | 7.0 | 2.2 |
| MS100L-2 | 3 | 6.34 | 0.87 | 82.6 | 2880 | 2.3 | 7.5 | 2.2 |
| MS112M-2 | 4 | 8.20 | 0.88 | 84.2 | 2890 | 2.3 | 7.5 | 2.2 |
| MS132S1-2 | 5.5 | 11.1 | 0.88 | 85.7 | 2900 | 2.3 | 7.5 | 2.2 |
| MS132S2-2 | 7.5 | 14.9 | 0.88 | 87 | 2900 | 2.3 | 7.5 | 2.2 |
| MS160M1-2 | 11 | 21.2 | 0.89 | 88.4 | 2947 | 2.3 | 7.5 | 2.2 |
| MS160M2-2 | 15 | 28.6 | 0.89 | 89.4 | 2947 | 2.3 | 7.5 | 2.2 |
| MS160L-2 | 18.5 | 34.7 | 0.90 | 90 | 2947 | 2.3 | 7.5 | 2.2 |
MS series three phase Ac Motor speed reducer RV025
Packaging & Shipping
Carton or plywood cases(See the picture)

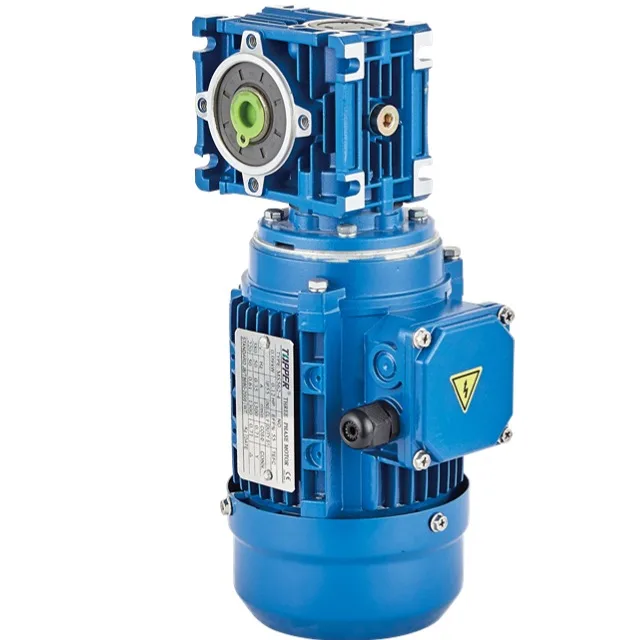

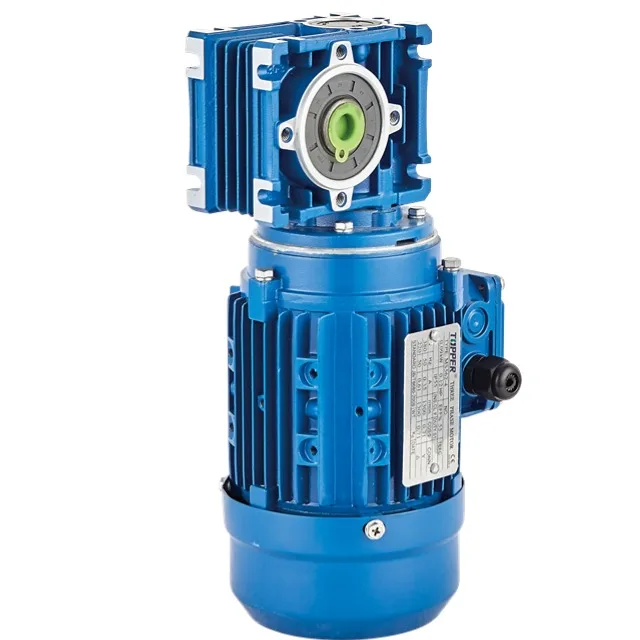

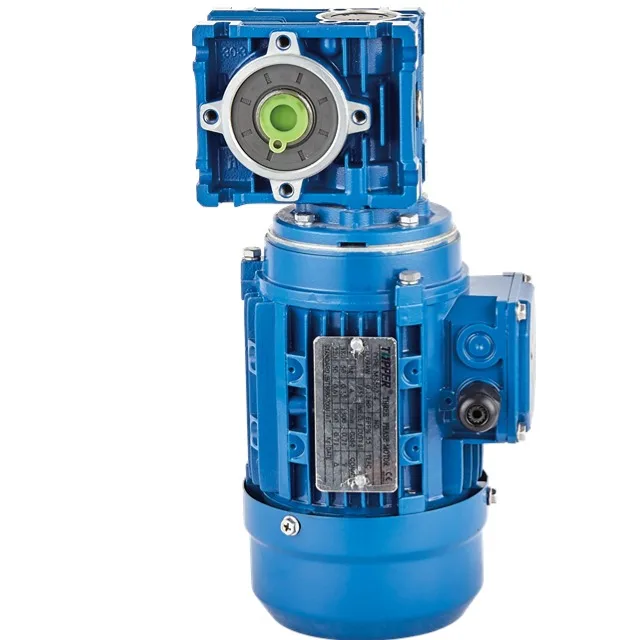

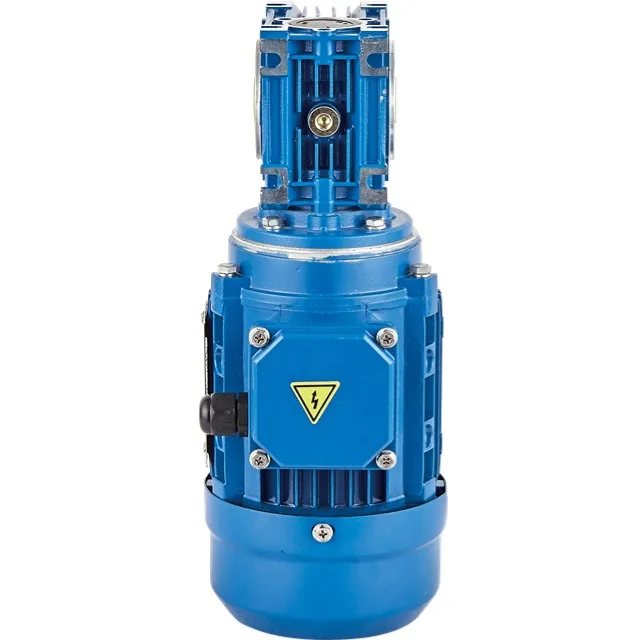

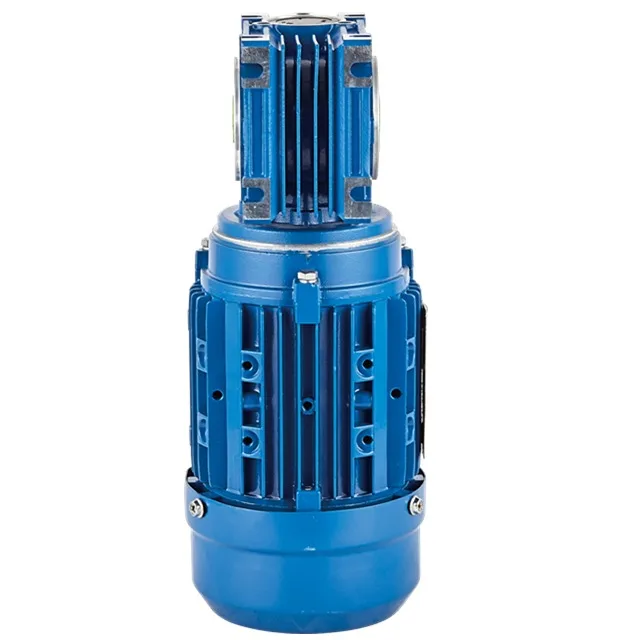

Detailed Images
Company Information
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-30days, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
