Description
Video | |
Input/Loop out | 1x 3G/HD SDI Level-B |
Resolution | 1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i |
Encoding | H.265 HEVC/H.264/AVC/Mjpeg |
Output | 1080P60(only input 1080P60) |
Bitrate | 0.16Mbps~32Mbps |
Bitrate Control | Bandwidth Priority(CBR)/Image Quantity Priority(VBR) |
GOP | 5-300 |
Advanced | De-interlacing, Image Enhancement,Noise Reduction, Sharpening,Video Rotate,Flip,Mirror,Clip,Monochrome |
Lantency Time | 100ms |
EDID | Switchable |
Audio | |
Input | 1xHDMI Embeded/1x3.5mm |
Encoding | AAC/AAC+/AAC++/MP3/MP2/AC3/G711A/U/Opus |
Resample | 44100/48000 Hz |
Bitrate | 32K/48K/64K/96K/128K/160K/192K/384K |
Sampling precision | 24 bit |
System | |
Ethernet | 1000M |

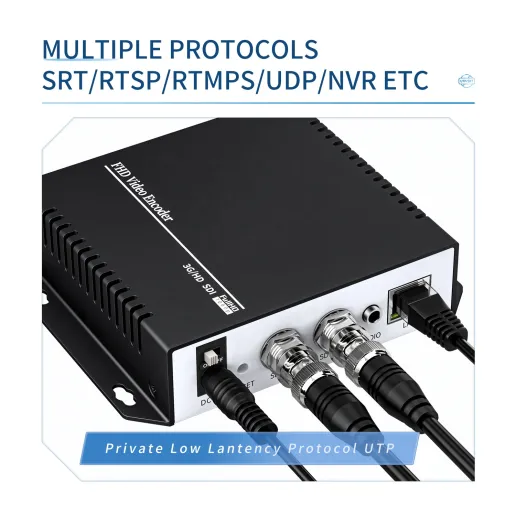

Protocol | UTP SRT HTTP RTSP RTMP(s) HLS FLV UDP unicast/multicast Onvif |
NTP | Support |
OSD | Time/TXT/Scroll/PNG |

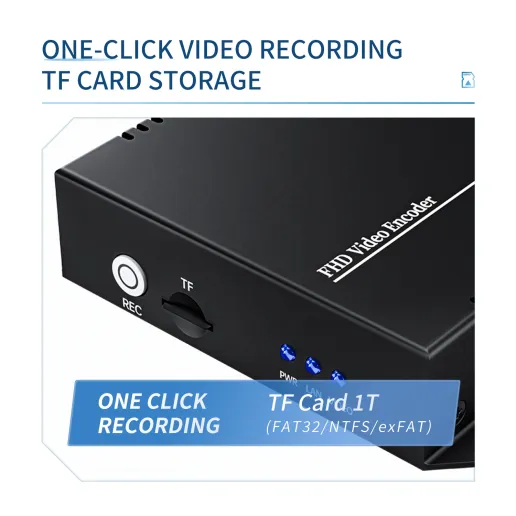

Storage | TF Card 1T(FAT32/NTFS/exFAT) |
Manager | Website or CGI Command |
Gerneral | |
Dimension (W×L×H) | 115x104x30mm(100x90mm board) |
Packing Box(WxLxH) | 252x156x58mm |
Net/Gross Weight | 0.3kg/0.6kg |
Temperature | 0-45(work),-20-80(storage) |
Power | 12V DC 1A |
Consumption | <5w |
Included in the Package | |
BM3371R-S-A | 1pcs |
Power Supply | 12V DC 1A 1pcs |
